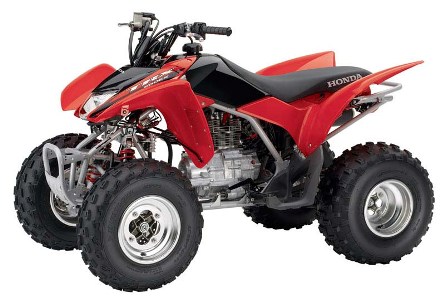

2007 TRX250EX ATV
(Vin No:  )
Color: Red
Miles when purchased: 0
Purchased date: 4/4/2009 (new)

Features | Specifications | Accessories | Photos

Features

Engine/Drivetrain

• Lightweight OHV air-cooled 229cc engine is longitudinally mounted to allow direct drive-shaft alignment to rear wheels for more efficient power transfer
• Two-valve cylinder head design features performance-optimized valve timing, a 31.5mm diameter intake valve and a 27mm diameter exhaust valve to produce a broad, usable powerband.
• 22mm carburetor with light throttle effort offers immediate engine response.
• A unique buffer plate in the carburetor float chamber helps maintain consistent fuel flow when riding across varied terrain.
• Solid-state CD ignition with electronic advance and 8750-rpm engine rev limiter.
• Closed crankcase vent system safeguards against engine oil contamination.
• Rubber-mounted engine reduces vibration.
• Automatic cam-chain tensioner requires no maintenance.
• High-efficiency oil cooler supplements the 2-Litre capacity wet sump, providing lower operating temperature over a wide range of riding conditions for maximum performance and increased engine life.
• 123-watt capacity alternator ensures abundant electrical power.
• Convenient electric starter.
• Five-speed transmission features sport riding ratios, reverse and Honda's new no-stall Honda SportClutch.
• Maintenance-free shaft drive routes power directly from the longitudinally mounted engine without inefficient directional changes.

Chassis/Suspension

• New front 27mm shocks combined with a new 32mm rear shock improves bump absorption and rider comfort.
• Lightweight double-cradle steel chassis is designed to withstand the demands of recreational riding.
• Independent double-wishbone front suspension provides an exceptional 150mm of travel.
• Steel swingarm and single rear shock absorber provide 145mm of travel.
• Dual hydraulic 174mm front disc brakes and fully sealed rear mechanical drum brake provide superb and consistent braking power.
• 22 x 7-10 front and 22 x 10-9 rear tires feature an aggressive, TRX400EX-derived knobby tread pattern for excellent traction.
• Lightweight aluminum wheels reduce unsprung weight for superb handling.

Additional features

• All-new bodywork inspired by Honda's legendary TRX450R.
• Ergonomic seat is designed for recreational riding, providing superb comfort and excellent rider maneuverability.
• Ergonomic layout and rider controls provide a comfortable operating position for a wide range of riding styles and rider sizes.
• Large, lightweight plastic fuel tank with 10.7 Litre capacity.
• Snorkel-type air intake system is specially designed to provide cool, clean air in all riding conditions.
• Single-headlight system features a twin-filament high/low 39W/39W bulb.
• LED taillight and brake light.
• Maintenance-free battery.
• Reusable, washable foam air filter.
• Neutral and reverse indicator lights.
• Durable, comfortable, easy-to-use hand and foot controls.
• Keyed ignition switch for added security.
• Easy-to-use parking brake.
• Standard tool kit includes a tire pressure gauge.
• Assembled in Timmonsville, South Carolina
