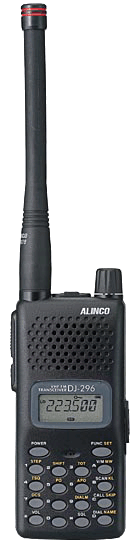

The DJ-296T features, alpha display, 4.5 watt output, 160 memories plus call channel, 9 autodialer memories, battery saver function, cable cloning function, direct frequency entry, auto power off with Morse alert, mosquito repel sound function, direct keypad frequency entry, backlit display and keypad, monitor and low power transmit keys and time-out timer. The DJ-296T also has extended receive from 216 to 250 MHz (FM). The DJ-296T also features a backlit keypad.
This radio comes with the EDC-93 wall charger, EBP50N NiMH battery pack, BNC flexible rubber duck antenna, belt clip and hand strap.
- 4.5 Watt Output
- 160 Memories
- Extended Receive
- Battery Saver
- Direct Frequency Entry
- S-Meter
- 13.8 VDC Direct Input
- Scanning
- CTCSS Encode/Decode
- DCS and 4 Tone Bursts
- 9 Autodial Memories
- Mosquito Repeller
- Backlit Keypad
|
Specifications: |
|
| General | |
| Frequency Coverage: | TX: 222.000 to 224.995MHz RX: 216.000 to 249.995MHz |
| Mode: | F3E |
| Channel Step: | 5, 10, 12.5, 15, 20, 25 & 30KHz |
| Antenna Port: | BNC 50 ohms |
| Stability: | +/- 5 ppm |
| Microphone impedance: | 2k ohms |
| Power supply requirement: | 7.0 to 16.0Vdc negative ground |
| Current drain(typical): | 1.2A at 5W 200mA at RX 280mW AF out 50mA at Stand-by 20mA at Battery Save On |
| Operating temperature: | -10 to +60 degrees C. (14 to 140 F) |
| Dimension: | With EBP50N battery 2.2" x 4.88" x 1.46" inches (56 x 124 x 37mm) Weight: 11.0Oz (310g) with EBP50N |
| Transmitter | |
| TX power output: | 4.5W with EBP50N Ni-MH battery 5.0W at 13.8V rated DC input 0.8W Low power position |
| Modulation: | Variable reactance FM |
| Sprious Emissions: | Less than ?60dB |
| Receiver | |
| Circuit: | Double superheterodyne |
| Sensitivity: | Less than -12dbu (0.25uV) |
| Selectivity: | More than -6dB/12kHz or more -60dB/26kHz or less |
| AF output: | 280mW typical 8 ohm load |
| Accessories: | Perfectly compatible to DJ195/196/496/596 series |
