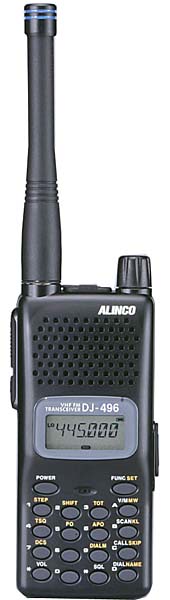

Alinco has created a new UHF FM Hand held Transceiver that sets new standards in features, convenience and easy operation. The DJ-496T sports an alphanumeric display for easy memory management. It has an ergonomic design that's "user friendly" and the 4 watt output battery is standard. You'll be ready to travel the world with CTCSS encode+decode, DCS and European tone bursts, all included at no extra cost. Best of all, the DJ-496T retains the proud Alinco tradition of quality construction and excellent value.
- Alphanumeric display
- 40 memory channels + Call Channel
- Backlit Keypad
- 4 watt output with standard battery
- CTCSS encode+decode and DCS
- 13.8 VDC direct input with battery charge feature
- Direct frequency input
- S-meter
- Autodialer
- Cable Cloning
- Computer programmable (third party software required)
- MARS/CAP capability
- Additional features, including theft alarm!
|
Specifications: |
|
| General | |
| Freq. RX original status: | 430 to 449.995 MHz |
| Freq. Stability: | +/-5 ppm |
| Antenna Imp.: | 50 ohm unbalanced |
| Supply Voltage: | DC 13.8V rated DC 7.0min to 16V max |
| Ground: | Negative GND |
| Current consumption at 13.8V external source: |
RX 200mA approx/280mW RX squelched 50mA approx. RX Batt.Save on 20mA approx. |
| Operating Temp. range: | -10 to +60 degrees C. |
| Dimension w/o projection: | 56(W) x 124(H) x 40 (D) |
| Weight with EBP-48N: | Approx. 375g (13.2oz) |
| Transmitter | |
| Output power: | 5W 13.8V or 4W EBP-48N Low=0.8W |
| Modulation | Variable reactance FM |
| Max. Deviation | +/- 5kHz |
| Spurious emission | less than -60db |
| Microphone Imp. | 2k ohms approx. |
| Receiver | |
| Circuit | Double superheterodyne |
| 1st IF freq. | 45.1Mhz |
| 2nd IF freq. | 455khz |
| Sensitivity 12db SINAD | better than -12dBu (0.25uV or less) |
| Selectivity | more than -6dB/12kHz less than -60dB/26kHz |
| Audio output power | 280mW |
| Audio impedance | 8 ohms |
