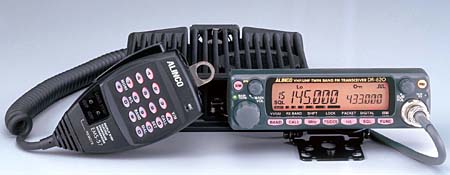

The Alinco DR-620T is a twin band mobile transceiver operating on the 2 meter and 70 cm bands. It has transmit coverage from 144 to 147.995 and 430-449.995 MHz. Receive coverage is 108 to 173.995 and 335 to 480 MHz. This includes the VHF air band in AM mode and the FM broadcast band 87.5 to 108 MHz in Wide FM mode. 200 alphanumeric memories are available. Power output on VHF is 50/10/5 watts and UHF is 35/10/5 watts. Dual band receiver with V/V and U/U capability (cross-band repeat is not supported). The large, easy-to-read three color (amber/yellow/orange) LCD shows status icons and alphanumeric tags. Other features include: auto power off, time out timer, tone burst, scan, channel lock-out, dimmer, VFO auto program, theft alarm function, narrow FM, power supply voltage display and remotable head. A fan on the rear panel insures cool operation during transmit. The front panel is remotable via the optional EDS-9 separation kit. The advanced 10F3 digital mode with speech compression technology is available via the optional EJ-47U board
The supplied EMS-57 Electret Condenser DTMF Hand Mic supports parameter setting and direct frequency entry. The radio also comes with DC cable, mobile mounting bracket with hardware, anti-theft (ACC on/off) function cable and anti-theft sticker.
- VHF/UHF operation includes V/U, V/V and U/U modes
(Not capable of full-duplex V/U,V/V,U/U operation. The sub-band mutes while transmitting on the Main band) - 200 Memory channels
- H/M/L power output settings- VHF: 50/10/5w UHF: 35/10/5w
- Large alphanumeric display
- Selectable display color illumination
- Skycommand System II+ Ready
- Internal duplexer - single PL-type antenna connector
- Removable control head can be remote mounted or allow transceiver to be inverted
- Expanded receive range includes FM broadcast band (WFM)
- AM Aircraft band reception and MARS modifiable (T models only
- Power supply voltage display
- Theft alarm feature
- Illuminated DTMF EMS-57 microphone (included with DR-620T) allows direct VFO frequency entry and remote control of transceiver
- CTCSS & DCS encode and decode plus four different tone bursts
- CTCSS Tone and DCS scan
- Programmable VFO and Memory scan including Timed, Busy and Skip mode
- "Time Out" timer and Busy-Channel-Lock-Out
- Cable Clone feature
- Temperature Compensated Crystal Oscillator
- Ignition key activated power on/off feature
Specifications:
| Genaral | |||||||||
| Frequency range |
|
||||||||
| Modulation | 16K0F3E (FM) /8K50F3E (Narrow FM) /10F3 (digital voice) /F1 (9600bps) /F2 (1200bps) /A3E (RX only/AM) | ||||||||
| Channel Steps | 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100 KHz | ||||||||
| Memory channel | VHF 80ch / UHF 80ch / Free-programmable 40ch / 1ch VHF CALL / 1ch UHF CALL | ||||||||
| Ant. impedance | 50 ohm unbalanced | ||||||||
| Frequency stability | +/- 2.5 ppm TCXO | ||||||||
| Power Supply Requirement | 13.8V DC +/- 15% Negative ground | ||||||||
| Current Drain | Approx. 11A TX high / 600mA RX max. / 400mA RX squelched | ||||||||
| Usable temperature range | -10c to +60c (14F to 140F) | ||||||||
| Dimensions | 140mm(W) X
40mm(H) X 185mm(D) 5.5 x 1.6 x 7.3 inches |
||||||||
| Weight | Approx. 1kg or 35.3oz | ||||||||
| Transmitter | |||||||||
| Output | High VHF 50W / UHF 35W, Mid 10W, Low 5W(approx.) | ||||||||
| Modulation System | Variable Reactance Frequency Modulation | ||||||||
| Max.Frequency Deviation | +/- 5KHz (FM) +/- 2.5KHz (NFM) | ||||||||
| Sprious emissions | Less than -60dB | ||||||||
| Receiver | |||||||||
| Receive system | Double Conversion Superheterodyne | ||||||||
| Intermediate Frequencies | 1st
21.7MHz/450KHZ 2nd 45.1MHz/455KHz |
||||||||
| Sensitivity(-12dB SINAD) | Main band
-14dBu(0.20uV) or better Sub band -12dBu(0.25uV) or better |
||||||||
| Squelch | -18 dBu (0.1uV) or less | ||||||||
| Selectivity | FM: -6dB: 12KHz
or more, -60dB: 28KHz or less NFM: -6dB: 6KHz or more, -60dB: 14KHz or less |
||||||||
| Audio Output | 2W or more (8ohm 10% THD) | ||||||||
|
Standard Accessories: * Microphone (EMS57/EMS53 depending on the version) * DC cable * Bracket * Hardware pack * ACC port cable * Sticker * Instruction Manual |
|||||||||
Optional Accessories
EJ-47U digital modulation board for amateur use *
EJ-50U Internal TNC unit / advanced version
EDS-9 Front-control unit separation kit 5m
EMS-57 Remote-control multi-function microphone (for European version)
