Ron's Ham Shack - 2025

Click image to enlarge



Images to come

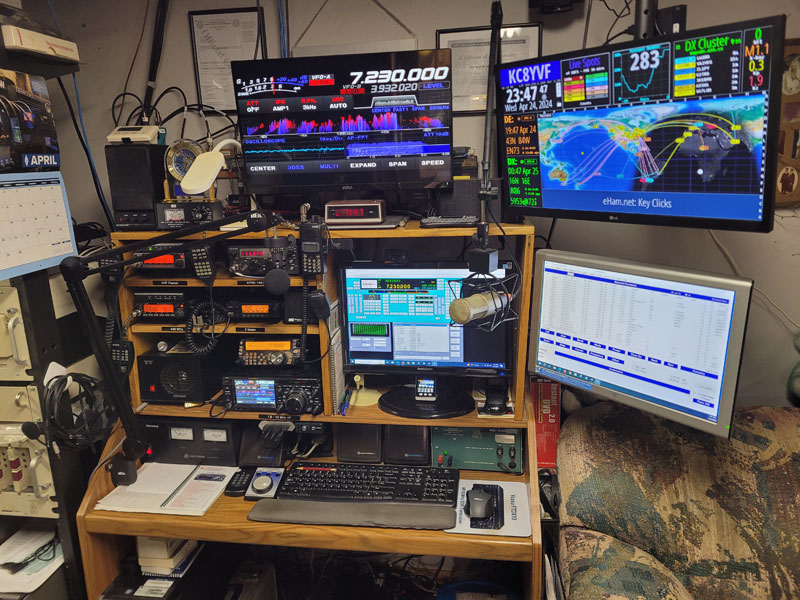

Ron's Ham Shack - 2024

Click image to enlarge

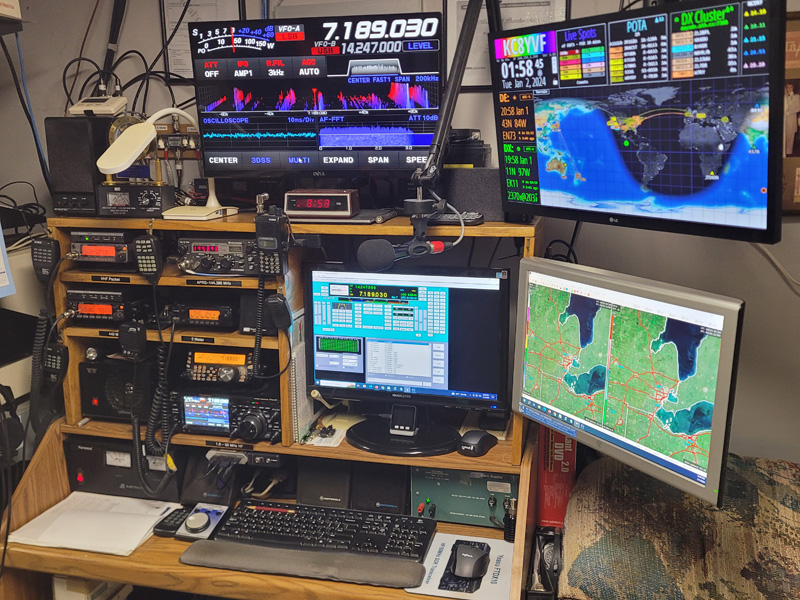

Added Heil PR40 mic, boom and shock mount




Added the Inovato Quadra Ham Clock and monitor

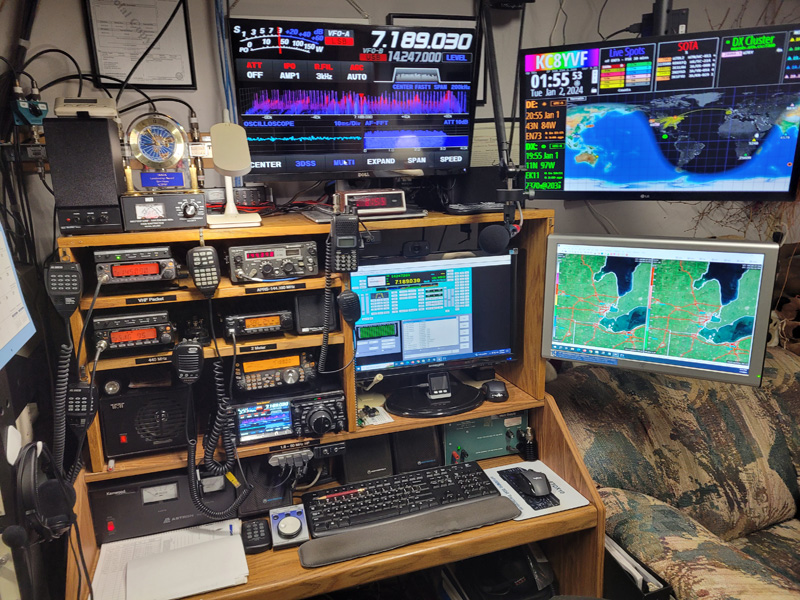

Ron's Ham Shack - 2023

Click image to enlarge

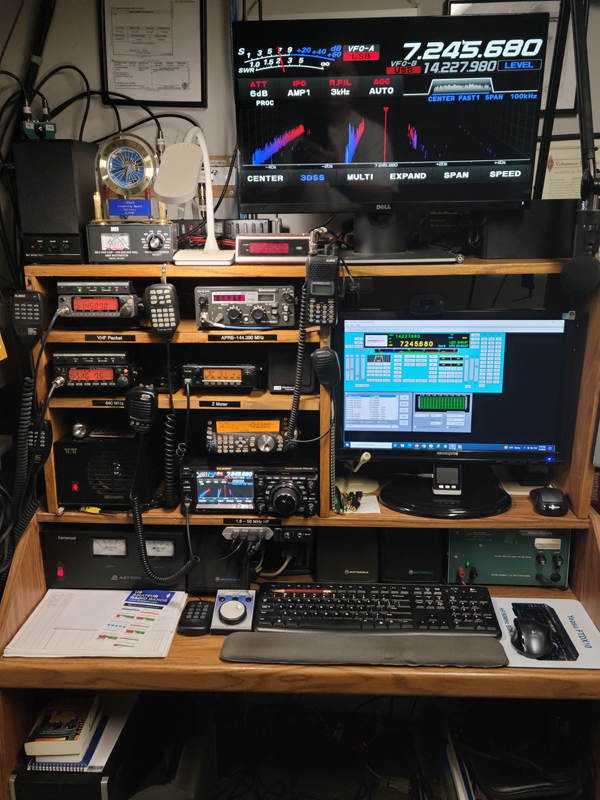

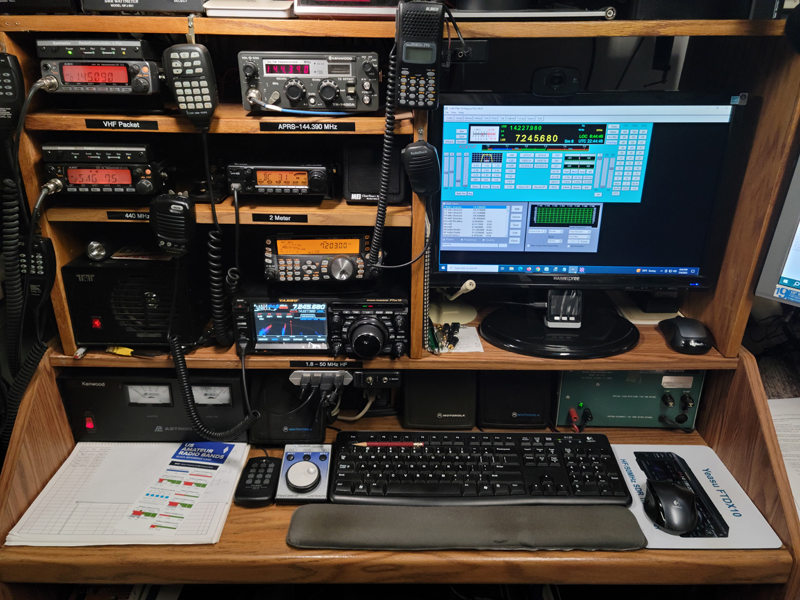

Added the Yeasu FTDX10 and monitor

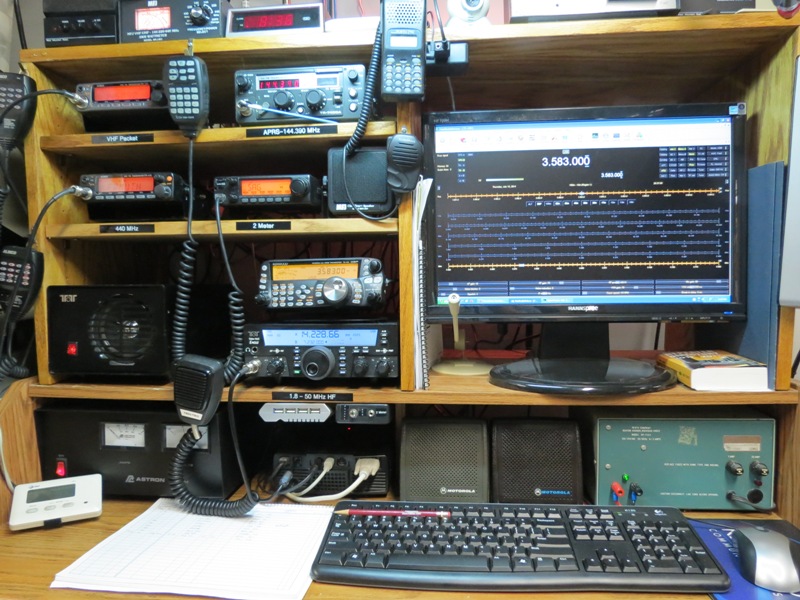

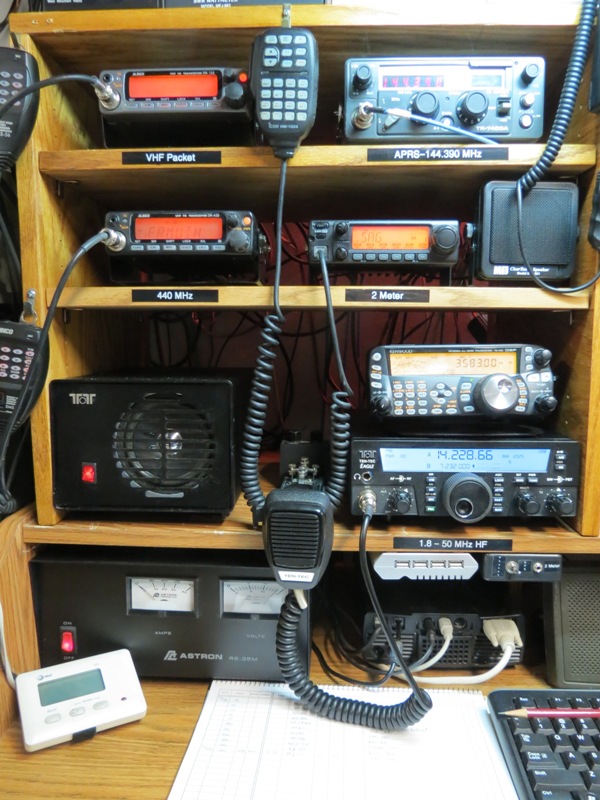

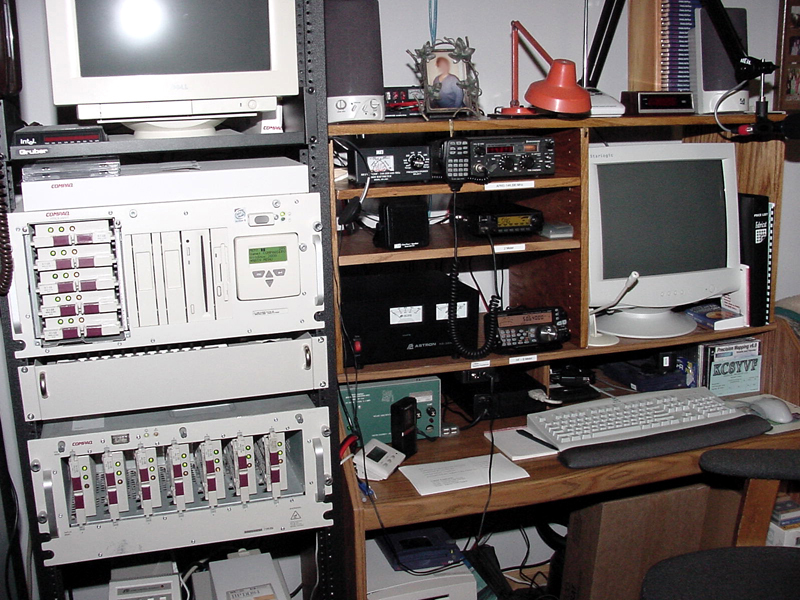

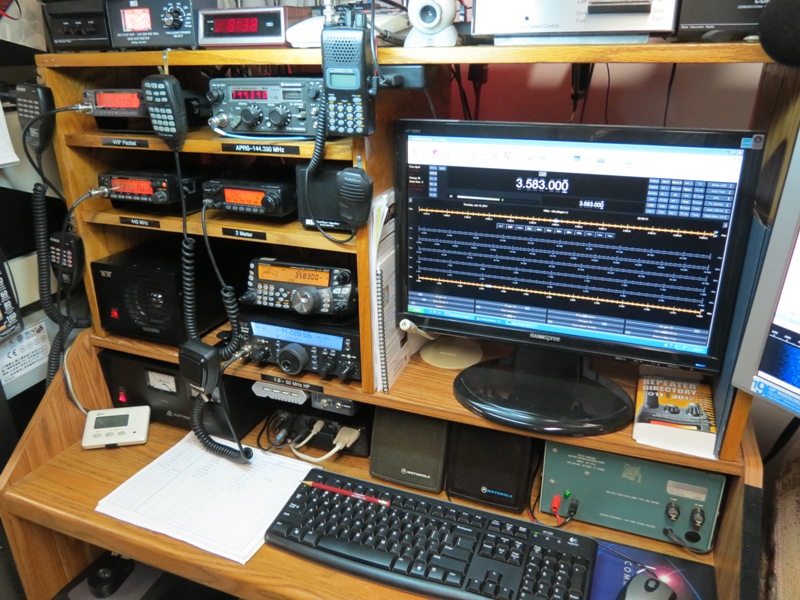

Ron's Ham Shack - 2014

Click image to enlarge

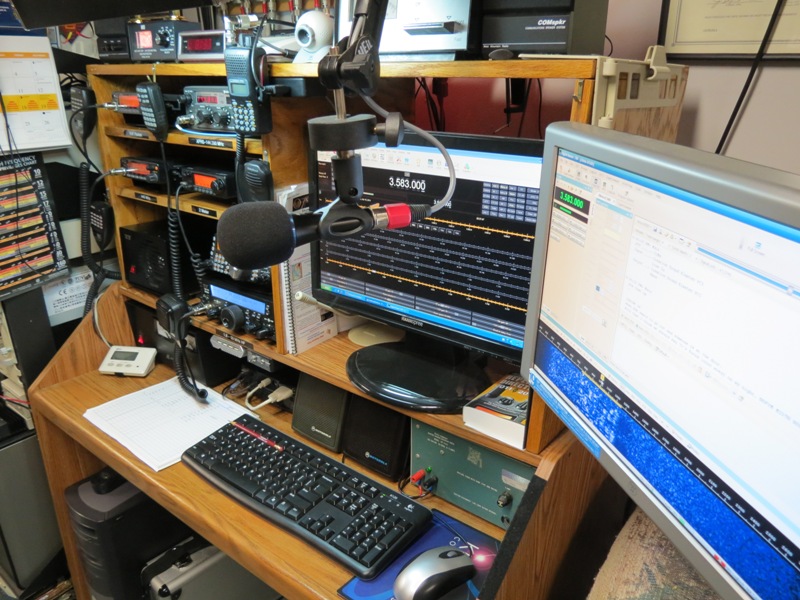

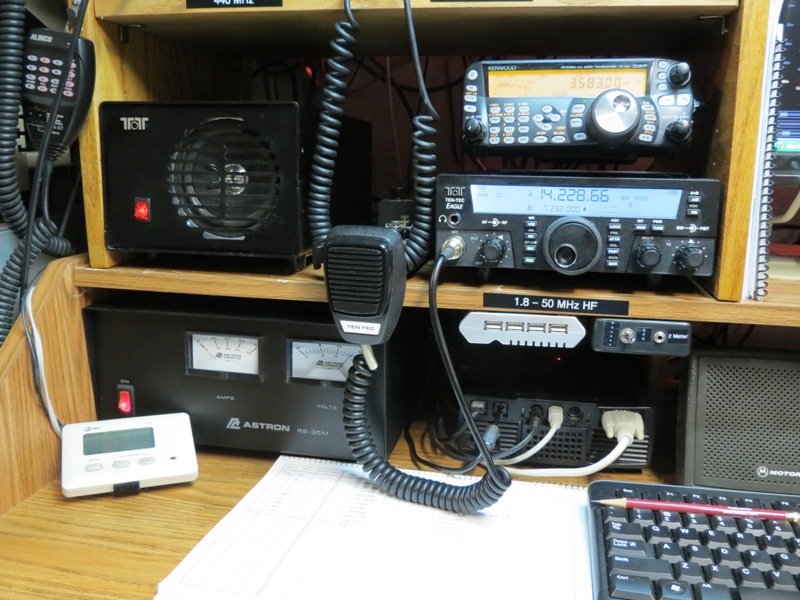

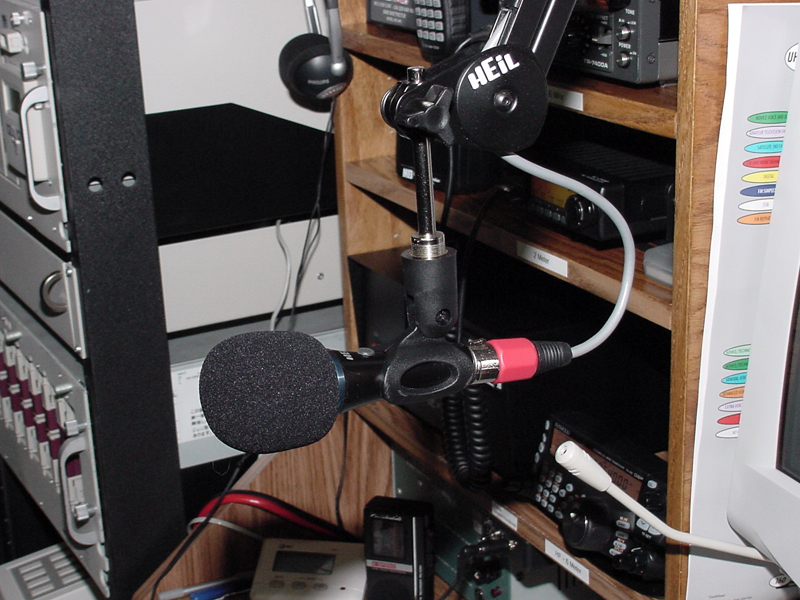

Heil Mic and Boom

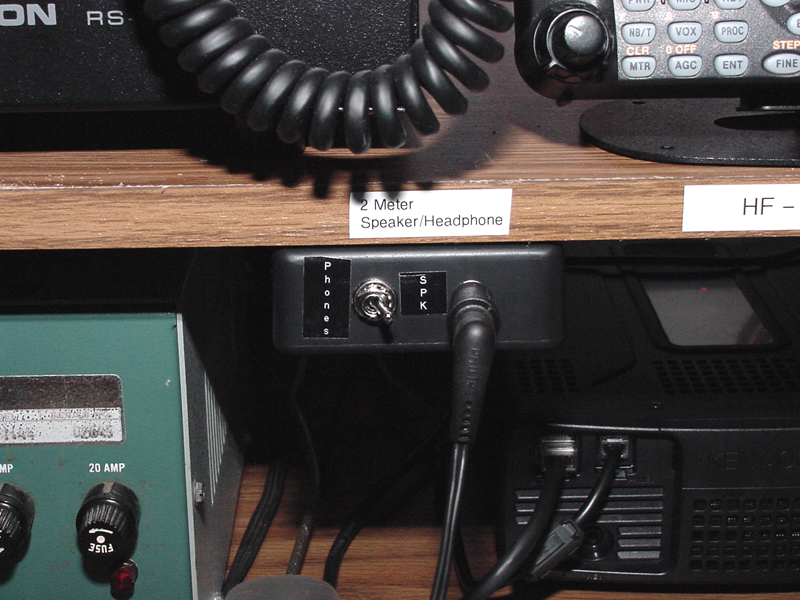

Headphone/Speaker Switch

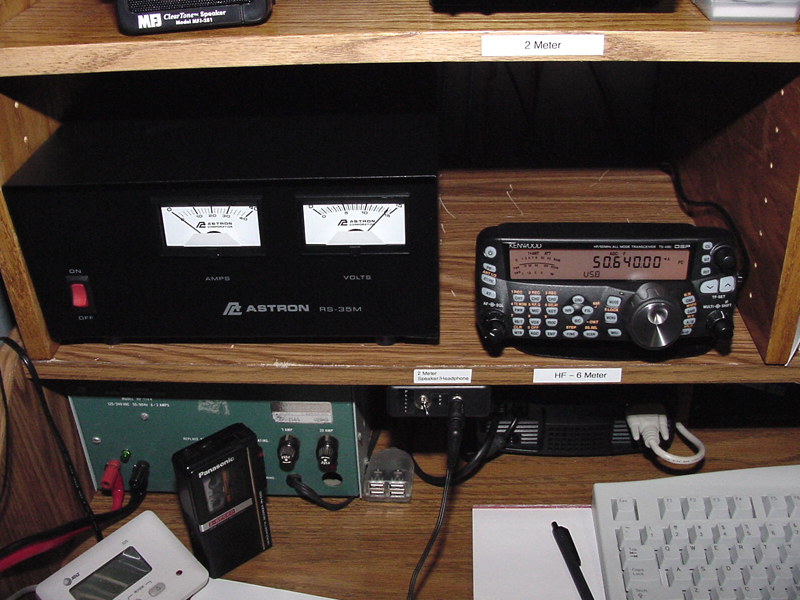

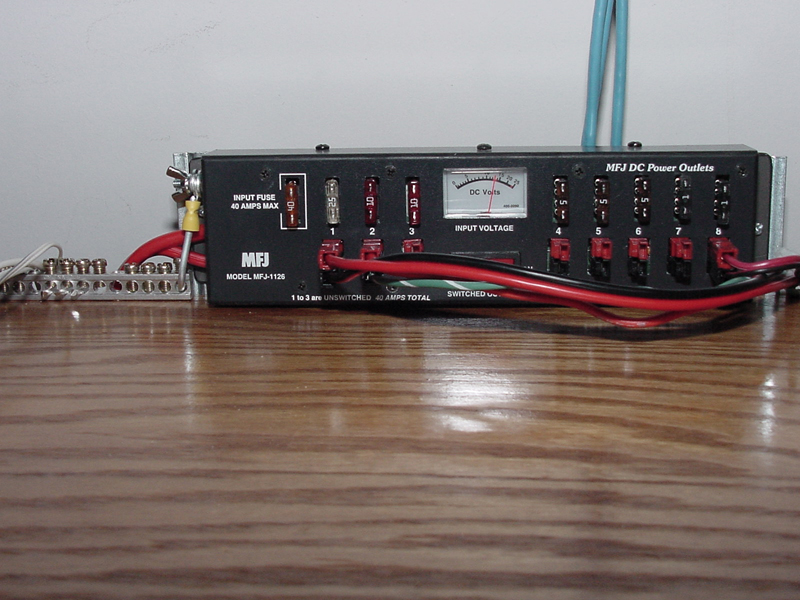

Power Center and Ground block

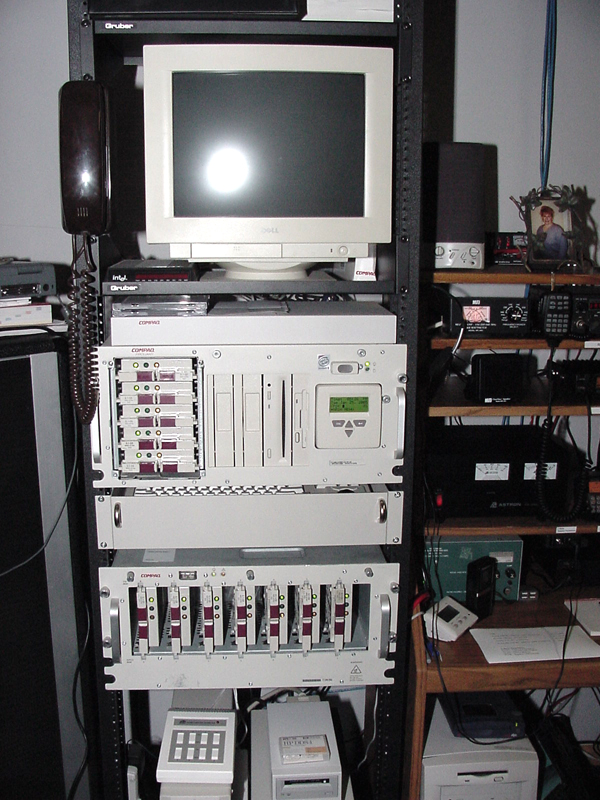

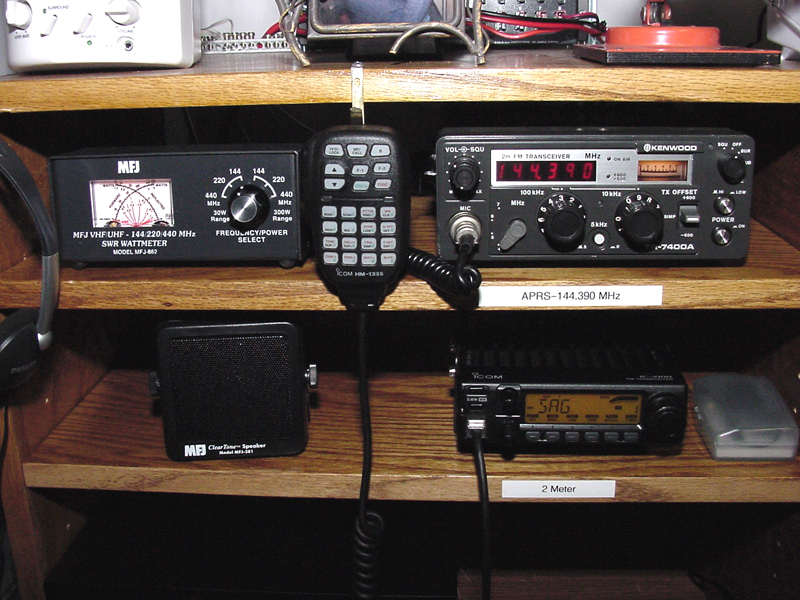

APRS/Weather Server
(Home automation and Rig control computers not shown)

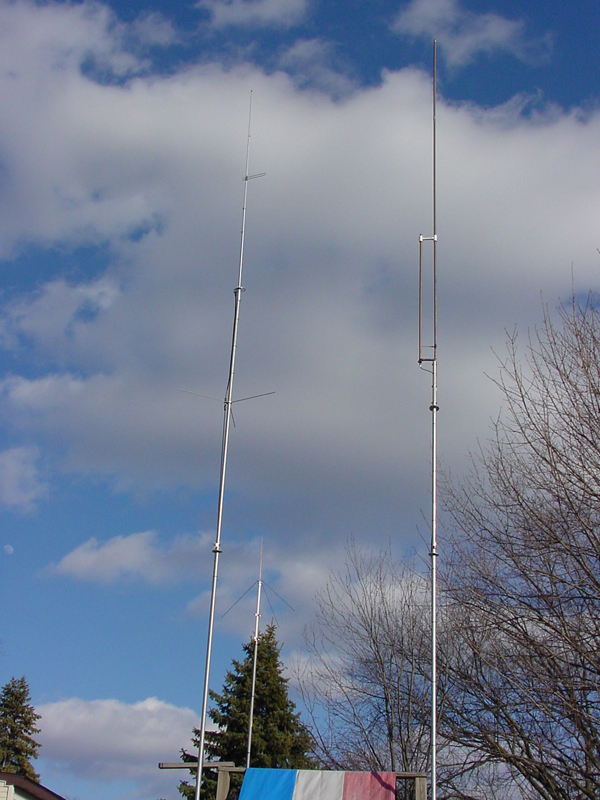

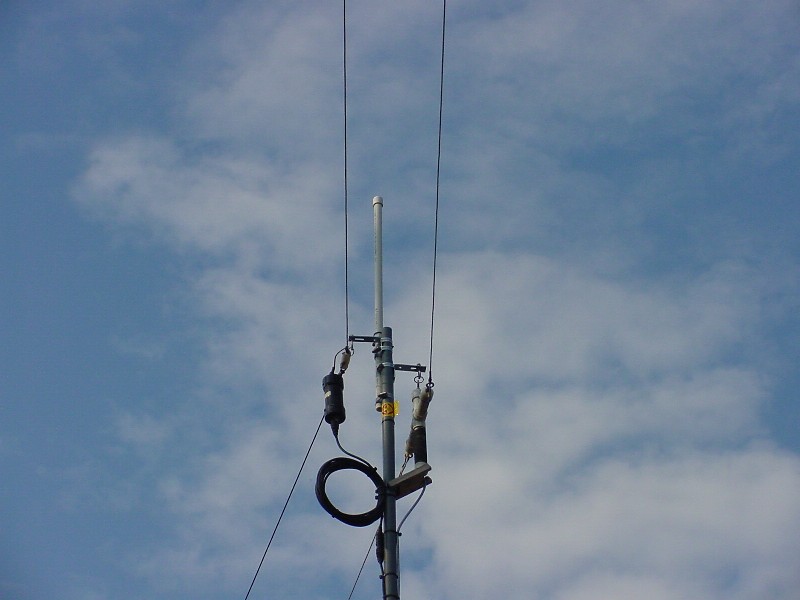

My Antennas

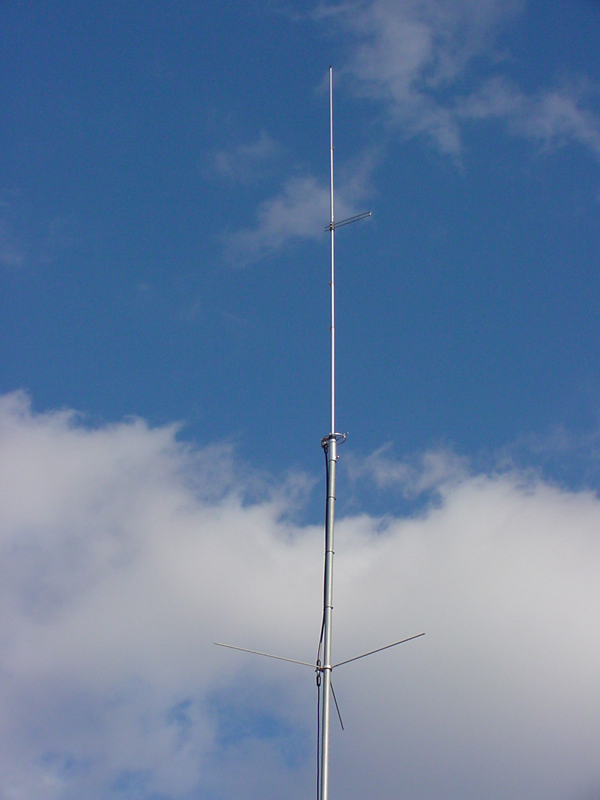

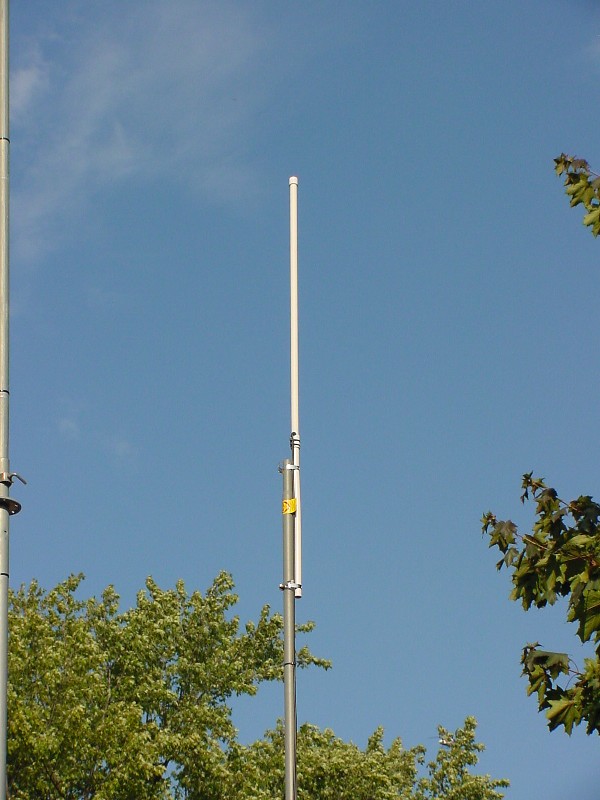

Cushcraft Ringo Ranger II
2 Meter

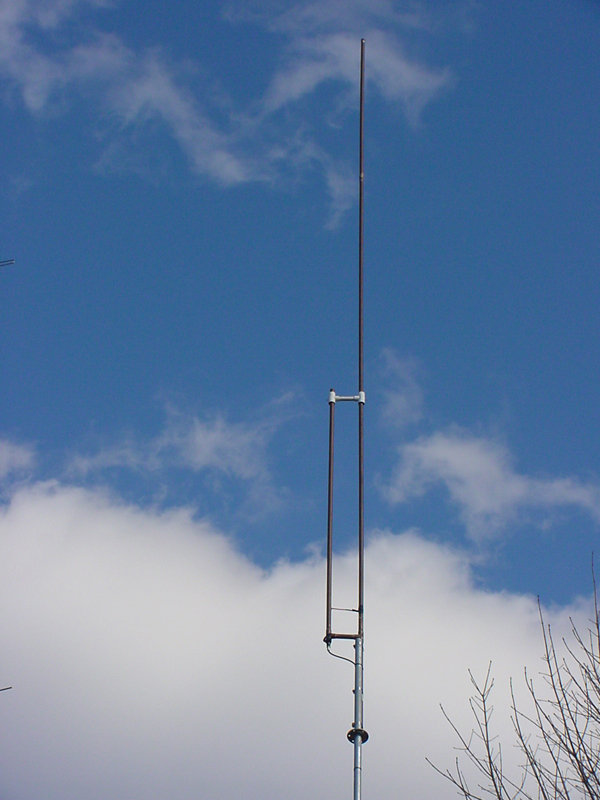

Copper 6 Meter J-Pole

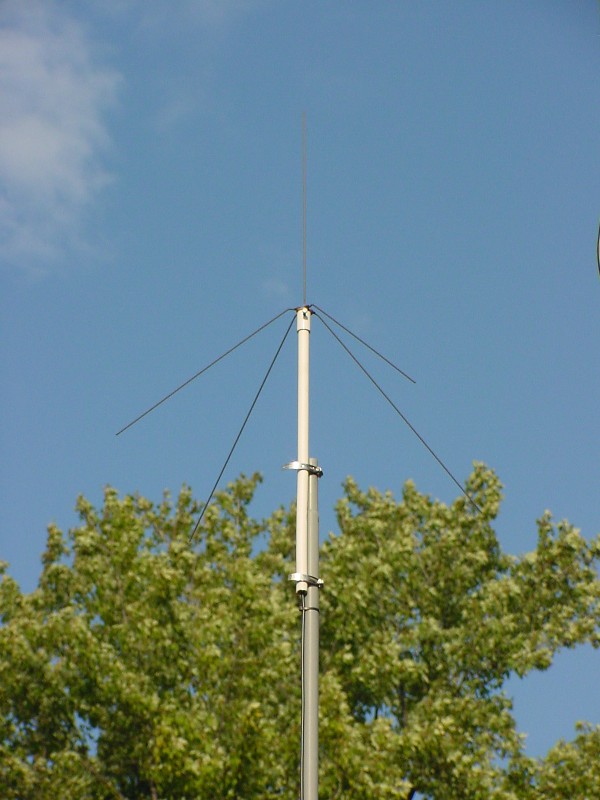

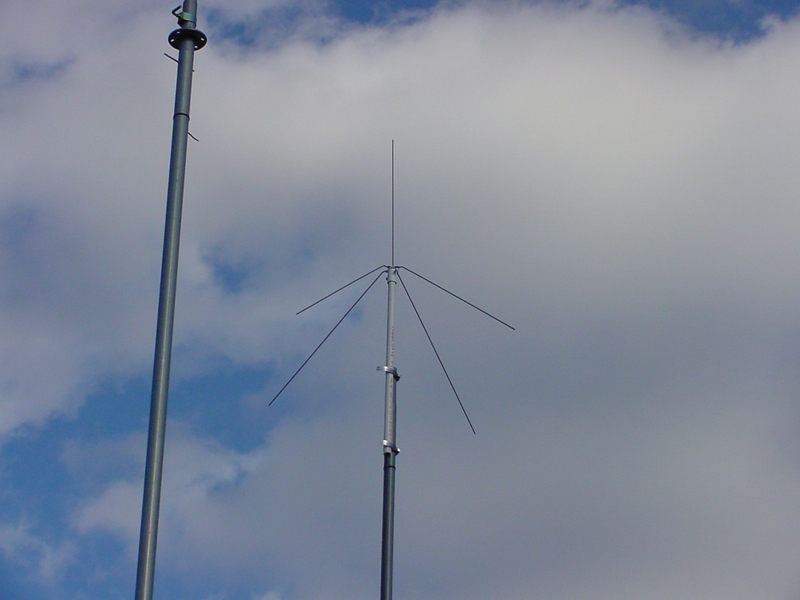

2 Meter Ground Plane - APRS


220 MHz J-Pole
440 MHz J-Pole
(in center)

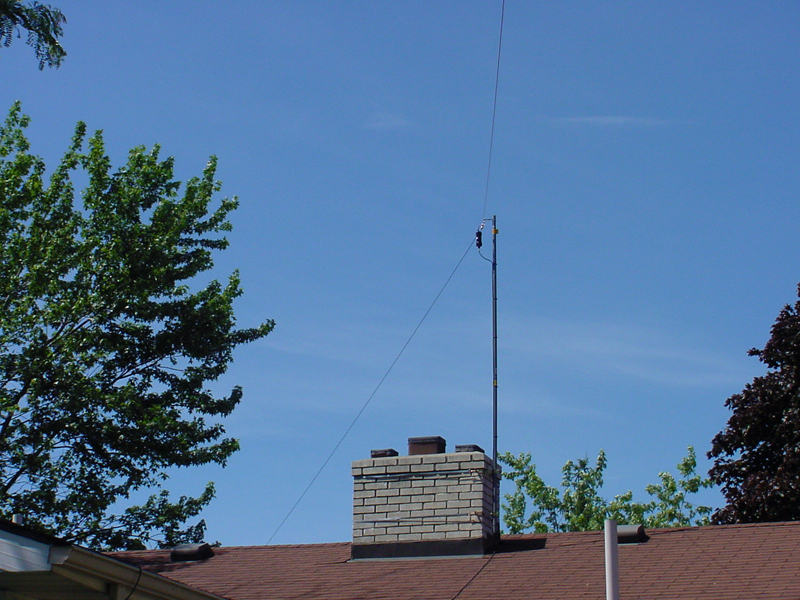

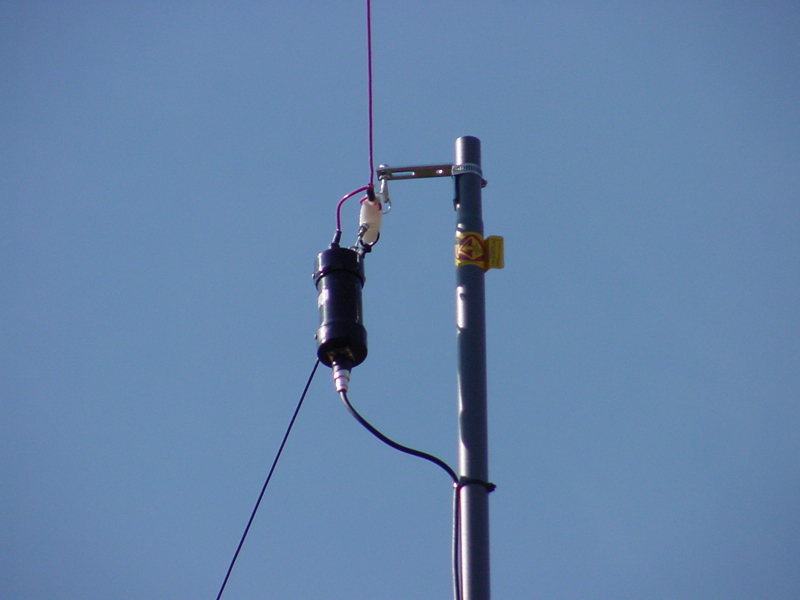

Windom Multiband HF

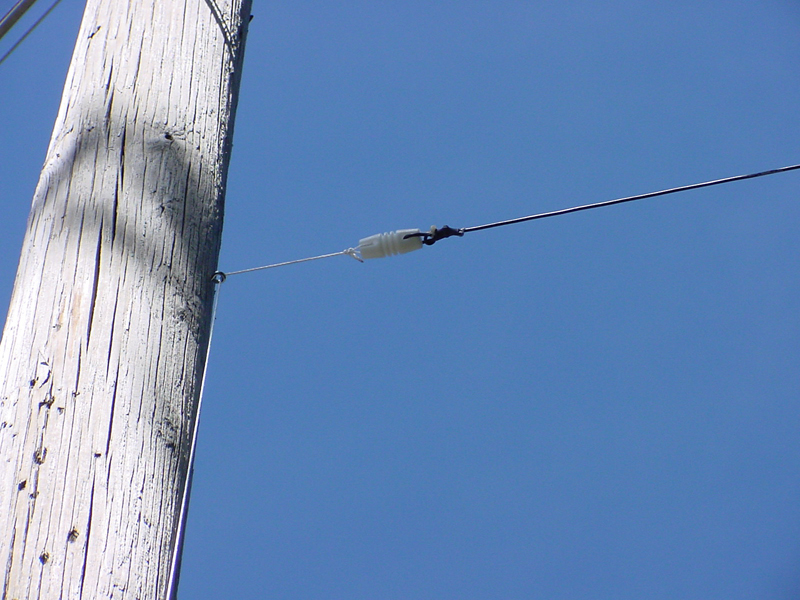

160 Meter loaded dipole
(on right)


Revised: 01/07/25
