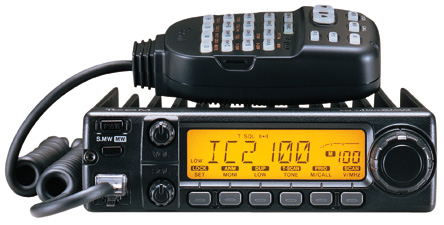

The Icom IC-2100H 2 meter FM mobile features a rugged design and an easy-to-read alphanumeric display. The displays may be set to green or amber. The receiver covers 136-174 MHz and the transmitter delivers 55, 10 or 5 watts of output. The improved receive IMD helps provide protection from excessively strong signals such as pager signals. And the squelch attenuator (approx 10 dB) allows you to reduce interference from strong nearby signals. A winning combination for receive performance. The oversized tuning dial is easy to grab while on the move and the large 4-level backlit display clearly provides key information at a glance. Memory channels can be assigned names for easy recognition and easy access. The 2100H supports three different scan modes: Full Scan, Memory Scan, Programmed Scan and five scan resume conditions.
Other features include: 113 memories, alphanumeric notes, 3-way priority watch and independently programmable Rx/Tx and tone squelch. There is an external speaker jack on the rear panel. The IC-2100H is built to rugged MIL SPEC 810C/D/E Shock-Vib standards and has a convenient front mounted mic jack. This radio includes the sophisticated, backlit HM-98S DTMF hand mic.
- Encode/Decode
- Tone Scan
- 113 Memories
- Scanning
- Scanning
- Call Channel
- 55/10/5 Watts Output
- Call Channel
- Priority Watch
- Remote Hand Mic
General
- Frequency Coverage [USA version]:
- Rx: 136-174 MHz
- Tx: 144-148 MHz
- Mode: FM
- Number of Memory Channels: 113 (inc. 3 pairs of scan edges, 3 log, 3 repeater, and 1 call channel)
- Usable Temperature Range: +14°F to +140°F, -10°C to +60°C;
- Frequency Resolution: 5, 10, 12.5, 15, 20, 25, 30, and 50 kHz
- Frequency Stability: ±10 ppm (-10°C to +60°C)
- Power Supply Requirement: 13.8 V DC+/-15% (negative ground)
- Current Drain - Transmit: 12.0 A (55 Watts)
- Current Drain - Receive: 1.0 A (max. audio output) 0.8 A (standby)
- Antenna Connector: SO-239 (50 ohm)
- Dimensions (projections not included): 5.5(W) x 1.6(H) x 7.1 (D) inches (140 x 40 x 180 mm)
- Weight: 2 lb, 10 oz (1.2 kg)
Transmitter
- Output Power: 55 Watt, 10 Watt, 5 Watt selectable
- Modulation System: Variable reactance frequency
- Max. Frequency Deviation: +/-5.0 kHz
- Spurious Emissions: Less than -60 dB
Receiver Receiver
- Receive System: Double-conversion superheterodyne
- Intermediate Frequencies: 1st 15.65 MHz, 2nd 450 kHz
- Sensitivity: Less than 0.18 µV for 12 dB SINAD
- Squelch Sensitivity: 0.13 µV at threshold
- Selectivity (wide/narrow): More than 12 kHz at -6 dB, Less than 28 kHz at -60 dB
- Spurious and Image Rejection: More than 60 dB
- Intermodulation rejection ratio: More than 70 dB
- Audio Output Power at 13 V DC: More than 2.4 W at 10% distortion with an 8 load.
- External Speaker Connector: 3-conductor 3.5 (d) mm (1/8 inch)/8 ohm
