The new Compaq ProLiant 1600R is the ultimate workgroup server combining high performance and availability features critical to maximizing server uptime. Compaq now introduces the latest Pentium II processor technology to this workgroup server while maintaining the, high availability and investment protection features you have come to rely on. The new Compaq ProLiant 1600R is designed for demanding workgroups and remote/branch sites that need a powerful and highly available platform that is easy to use.

Space-saving rack-mountable form factor (5U)
Intel Pentium^® II processor 400 or 450 MHz (dual processor capability)
512-KB second level ECC cache standard
100 MHz GTL Bus Design
64 MB 100 MHz registered ECC SDRAM memory standard, expandable to 1 GB
Two PCI and four shared PCI/ISA slots (six total slots)
Compaq Netelligent 10/100 TX PCI UTP Controller (embedded) on the PCI bus
Integrated Dual Channel Wide-Ultra SCSI-3 Controller
Support for up to five 1.0-inch hot-plug hard drives or two 1.6-inch and one 1-inch
hot plug hard drives
63.7 GB maximum internal storage
I₂O Ready
Integrated Management Display (IMD) (optional)
Compaq Hot-Pluggable Redundant Power Supply (optional) Preinstalled 24X Max¹CD-ROM
drive IDE
Compaq Insight Manager, SmartStart, Integrated Remote Console (IRC) and Automatic Server Recovery-2 (ASR-2 )
Protected by Compaq Services, including a three-year on-site limited warranty and extended Pre-Failure Warranty² which covers Intel Pentium II processors, memory and disk drives.

Data transfer rates will vary from 150 KB/s to 3600 KB/s.
Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.

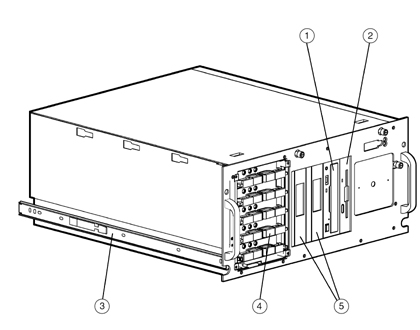

Rack Models

High Speed IDE CD-ROM
1.44-MB Diskette Drive
Side Rails
Hot Plug Drive Cage
Two available Removable Media Bays

At A Glance

Intel Pentium^® II processor 350, 400 or 450 MHz (dual processor capability)

512-KB second-level ECC cache standard

100-MHz GTL Bus Design

64-MB, 100-MHz registered ECC SDRAM memory standard, expandable to 1 GB

Two PCI and four shared PCI/ISA slots, (six total slots)

Compaq 10/100 TX PCI UTP Controller (embedded) on the PCI bus

Integrated Dual Channel
Wide-Ultra SCSI-3 Adapter

Support for up to five 1-inch or two 1.6-inch and one 1-inch hot plug hard drives

91-GB maximum internal storage (internal hot plug drive cage only)

Wide-Ultra SCSI-3 Drive Cage standard

Wide Ultra2/Ultra3 SCSI Drive Cage optional

Integrated Management Display (IMD) (optional)

I₂O Ready

Integrated Remote Console (IRC)

Automatic Server Recovery-2 (ASR-2)

Compaq Hot Plug Redundant Power Supply (optional)

Easy-to-service chassis

Pre-installed High SpeedIDE
CD-ROM Drive

Compaq Insight Manager and SmartStart

Protected by Compaq Services, including a three-year, Next Business Day on-site limited Global warranty and extended Pre-Failure Warranty which covers processors, memory and hard drives — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details

Standard Features

Compaq ProLiant 1600 Pentium II Model

Processor
Intel Pentium II processor 450 MHz

Cache Memory
512-KB second-level ECC cache

Upgradability
Upgradable to dual processing

Memory
Standard	64 MB (100-MHz registered ECC SDRAM memory standard)
Maximum	1 GB
Optional	256-MB 100-MHz Registered ECC SDRAM Memory Kit (313616-B21)
Network Controller
Compaq 10/100 TX PCI UTP controller (embedded) on the PCI local bus

Expansion Slots
I/O (Total)	6
PCI	2
Shared PCI/ISA	4

Storage Controller
Integrated Dual Channel Wide-Ultra SCSI-3 Adapter

Storage
Diskette Drive	1.44 MB
CD-ROM	High Speed IDE CD-ROM Drive
Hard Drives	None
Maximum Internal Storage	91 GB (internal hot plug drive cage only)

Interfaces
Parallel	1
Serial	2
Pointing Device (Mouse)	1
Graphics	1
Hot Plug Keyboard	1
External Wide-Ultra SCSI-3	1
Network RJ-45	1

Graphics
Integrated 1024 x 768, 256 color non-interlaced on PCI local bus, 1-MB video memory

Form Factor
Tower or Rack (5U) Rack ships with sliding rails and cable management

Compaq Software
Compaq Insight Manager	The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart	The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers	Same easy to use yet powerful GUI configuration utility and easy to navigate wizards for all Smart Array Controllers

Manageability

Compaq Insight Manager
Compaq Remote Insight Board (PCI) (optional)
Automatic Server Recovery-2 (ASR-2)
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Communication is out-of-band
Integrated Management Display (IMD) (optional)
Integrated Management Log
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Recovery Server Option (optional)
Off-Line Backup Processor capability
Pre-Failure Warranty (covers processors, hard drives and memory)

Security

Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Power Supply

325 Watts-CE Mark Compliant

OS Support

Microsoft Windows NT
Microsoft Windows 2000 Server
Novell NetWare
SCO UnixWare and OpenServer
IBM OS/2 Warp Family
Sun Solaris
Banyan VINES

Rack Model 6/450 Model 1 - 313670-xx1

Processor(s)	Intel Pentium II processor 450-MHz	Network Controller	10/100 TX PCI UTP controller
Cache Memory	512-KB second level ECC cache	Storage Controller	Integrated Dual Channel Wide-Ultra SCSI-3 Adapter
Memory	100-MHz registered ECC SDRAM	Internal Storage	91 GB max
Standard	64 MB	Optical Drive	High Speed IDE CD-ROM Drive
Maximum	1 GB	Form Factor	5U Rack

TechSpecs

System Unit - Rack
Dimensions	8.67 x 19 x 22.75 in/22 x 48.34 x 55.9 cm
Weight	63 lbs/28.35 kg (without hard drives)
Input Requirements
Range Line Voltage	90 to132 VAC/180 to 265 VAC
Nominal Line Voltage	100 to 120 VAC/220 to 240 VAC
Line Frequency	50 to 60 Hz
BTU Rating	1,706 BTU
Steady-State Input Power	500W
Output	325W
Temperature Range
Operating	50° to 93°F/10° to 35°C
DDS-3 AutoLoader	–22° to 140°F/–30° to 60°C
Relative Humidity (non-condensing)
Operating	20% to 80%
Non-operating	5% to 90%
Acoustic Noise	NPEL (BELS)	AVERAGE SPL(dBA)
Idle (Fixed Disk Drives Spinning) Operating (Random Seeks to Fixed Disks)	6 6.1	43 44
